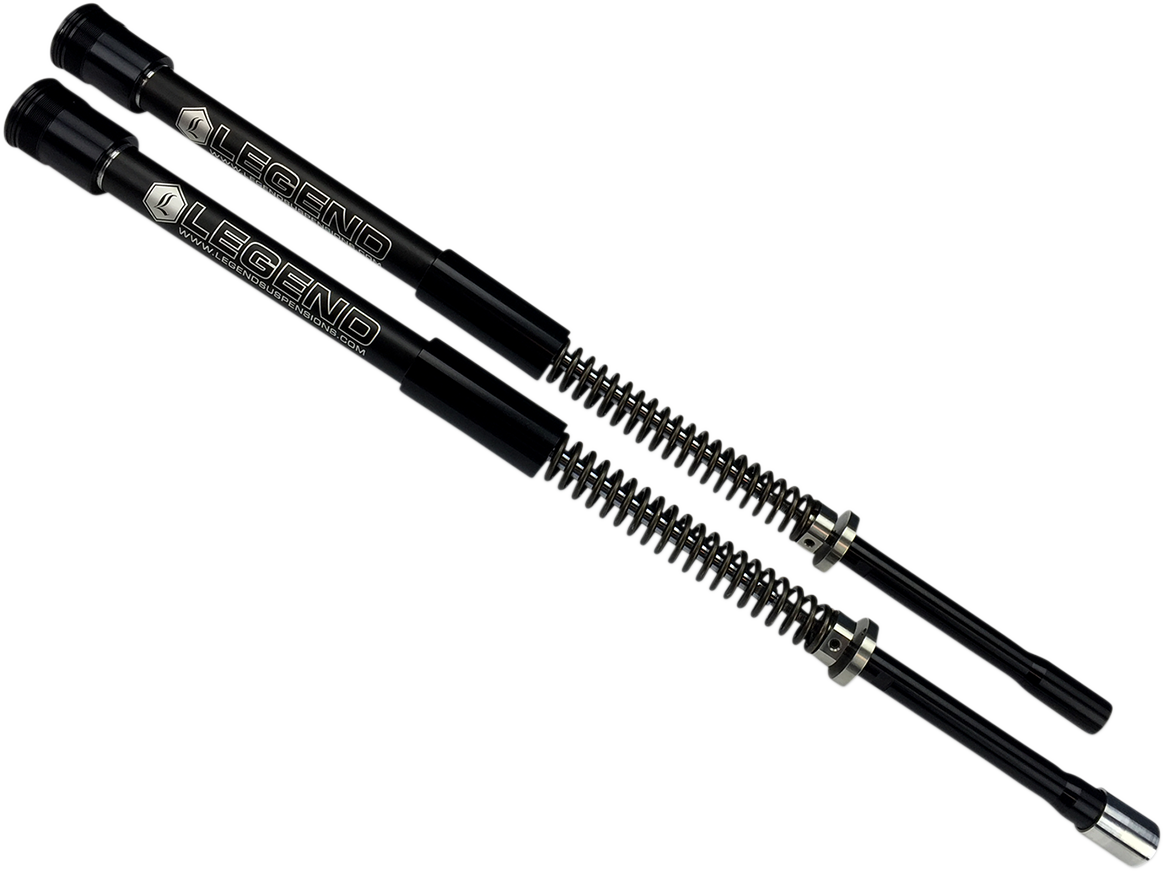

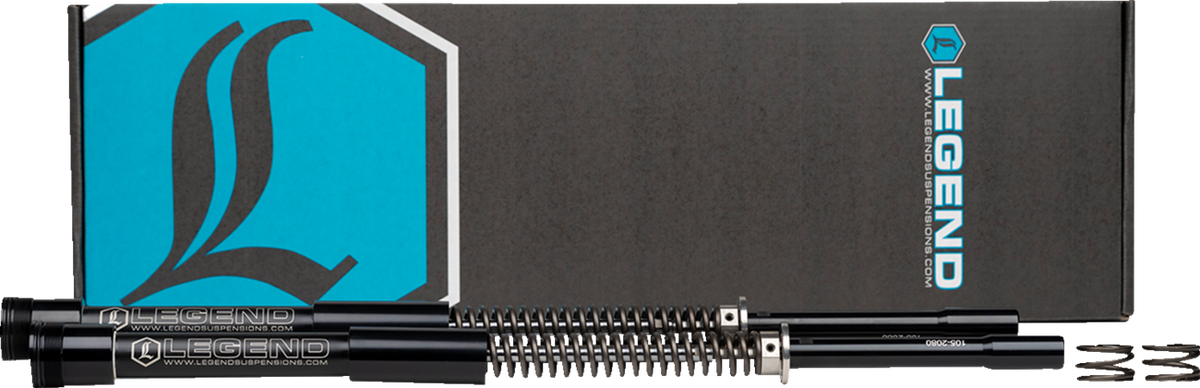

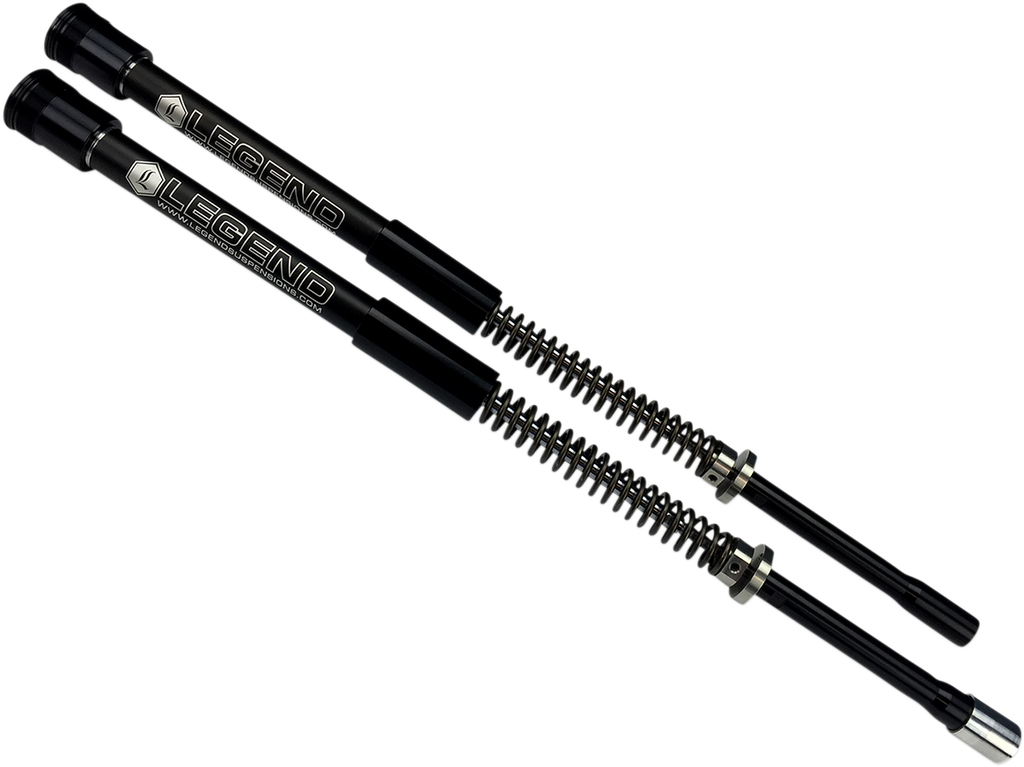

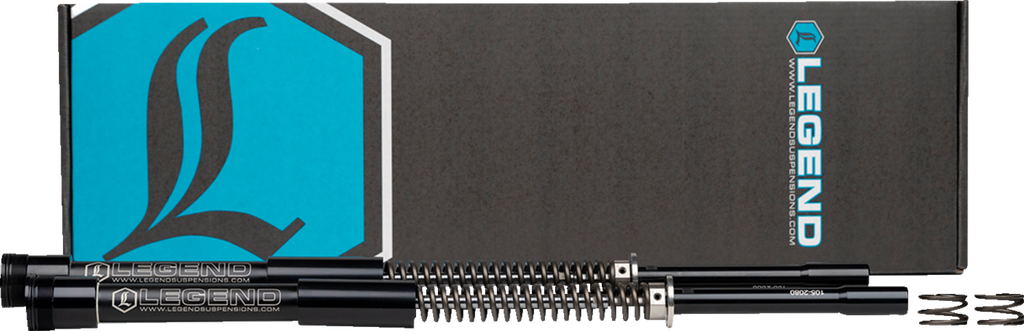

Legend Suspension AXEO21KO Front End Suspension - 49 mm - For 21" Wheel - CVO Road Glide '18-'22

AXEO21KO Front End Suspension - 49 mm - For 21" Wheel - CVO Road Glide '18-'22

• Designed specifically for use with '18-'22 CVO Road Glide models equipped with an OEM Knock-Out 21" front wheel
• Easy installation

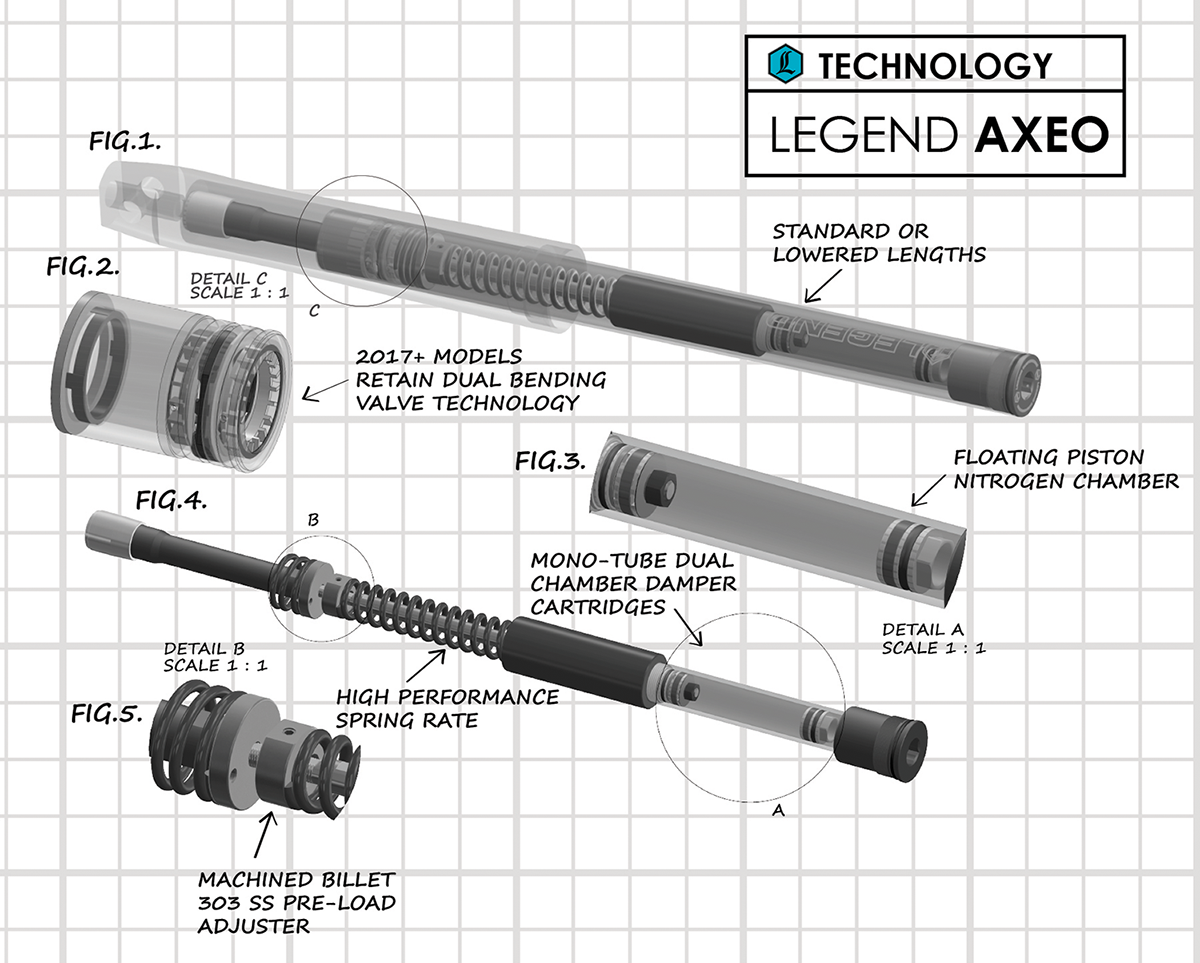

• Includes two mono-tube, dual chambered damper cartridges, and two top out springs
• Performance spring rate
• Machined 303 Stainless threaded pre-load adjuster
• Increased pre-load range allows the tuning for various riding styles and weights
• Ride quality is smooth and controlled
• Improves stability, cornering, and traction
• Eliminates front-end dive during aggressive braking and maneuvering
• Firm feel for high-speed sweeping turns
• Eliminates bottoming out on large bumps or potholes
• Reduces dragging floorboards and pegs
• Designed for optimum performance with Legend rear suspensions
• '17+ AXEO models retain Harley Davidson's Dual Bending Valve Technology in the stock upper fork tubes
• Made by hand in Sturgis, SD USA

Fitment

• 2018-2022 HARLEY-DAVIDSON FLTRXSE - CVO ROAD GLIDE

Installation notes

• Designed specifically for 2018-2022 CVO Road Glide models equipped with a factory Knock Out 21″ wheel
• Will fit any FL model that has the H-D Knock-Out Wheel Kit installed-Harley Davidson OEM P/N’s 43300494 / 43300496
• Does not fit 2023 CVO Road Glide models with inverted forks
• Due to the nature of the design, this front-end kit will raise the overall ride height of the motorcycle

Manufacturer part number: 0414-0544
Distributor part number: 0414-0544
Sold as: Kit

Due to the nature of the design, this front end kit will raise the overall ride height of the motorcycle.
