Legend Suspension REVO ARC External Reservoir Mount

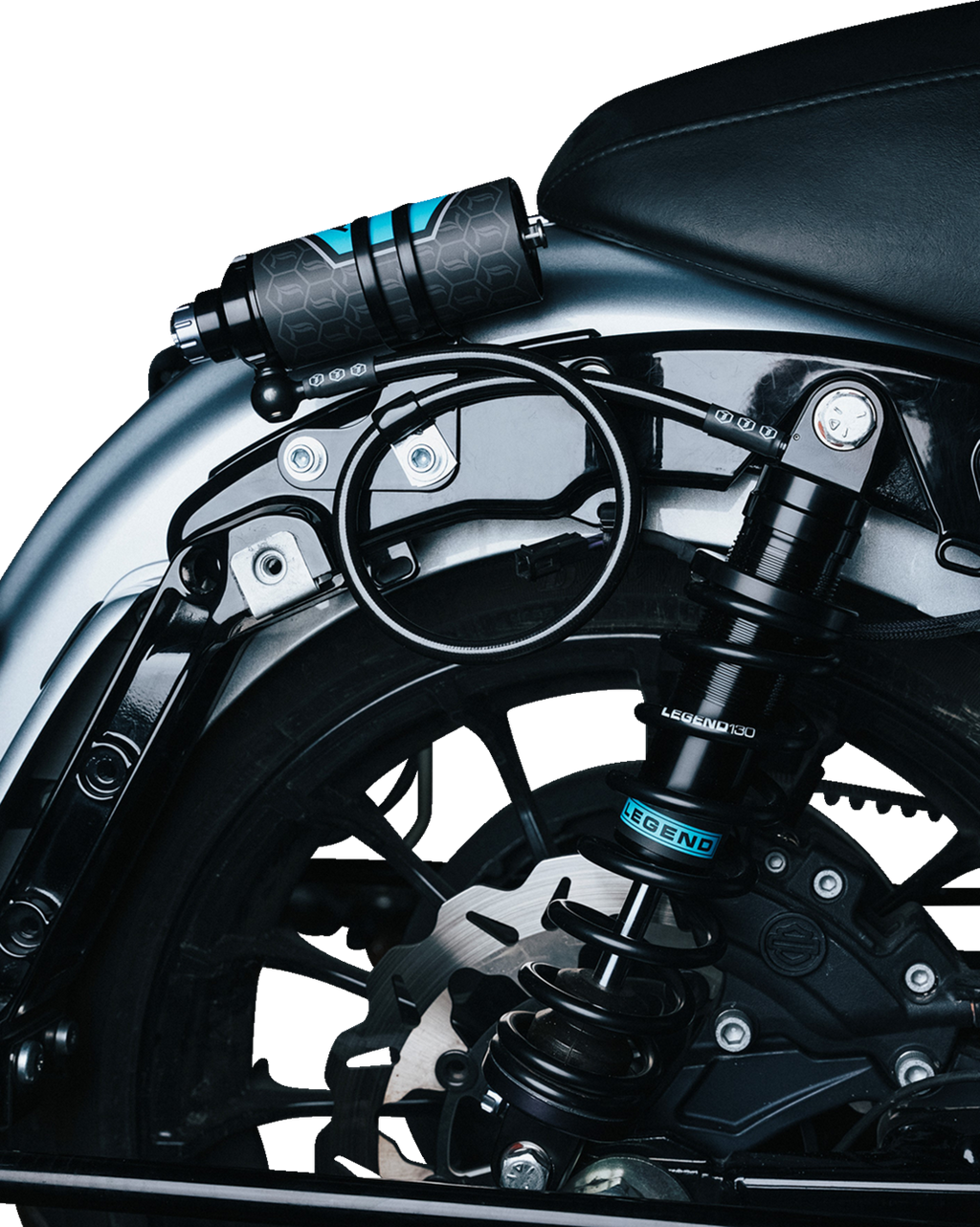

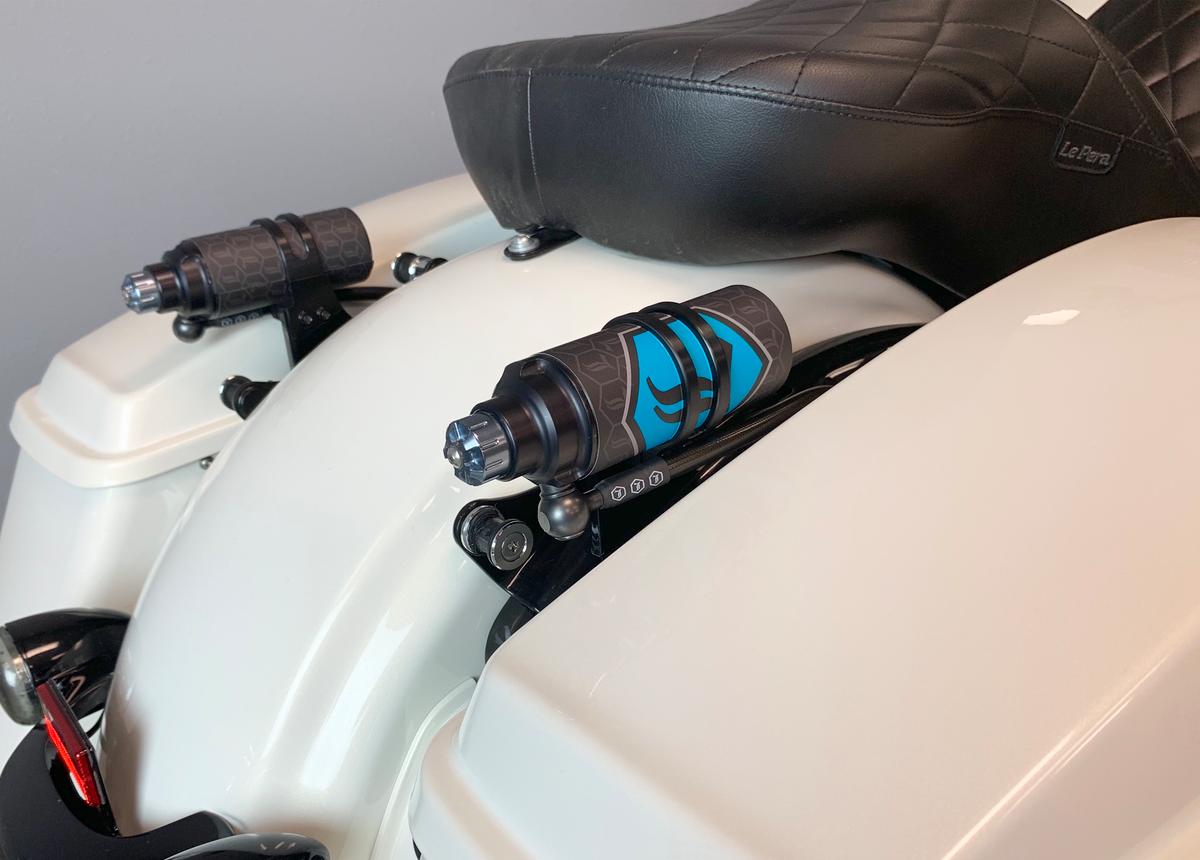

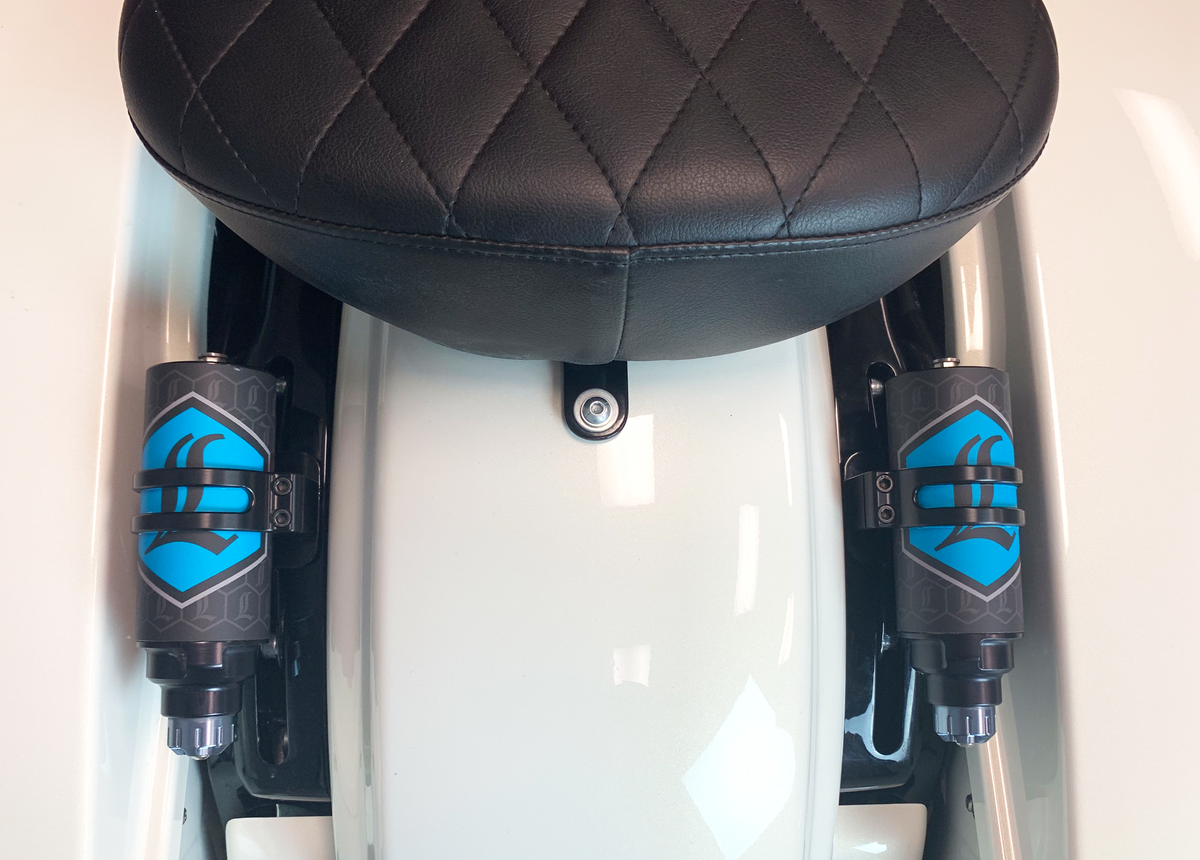

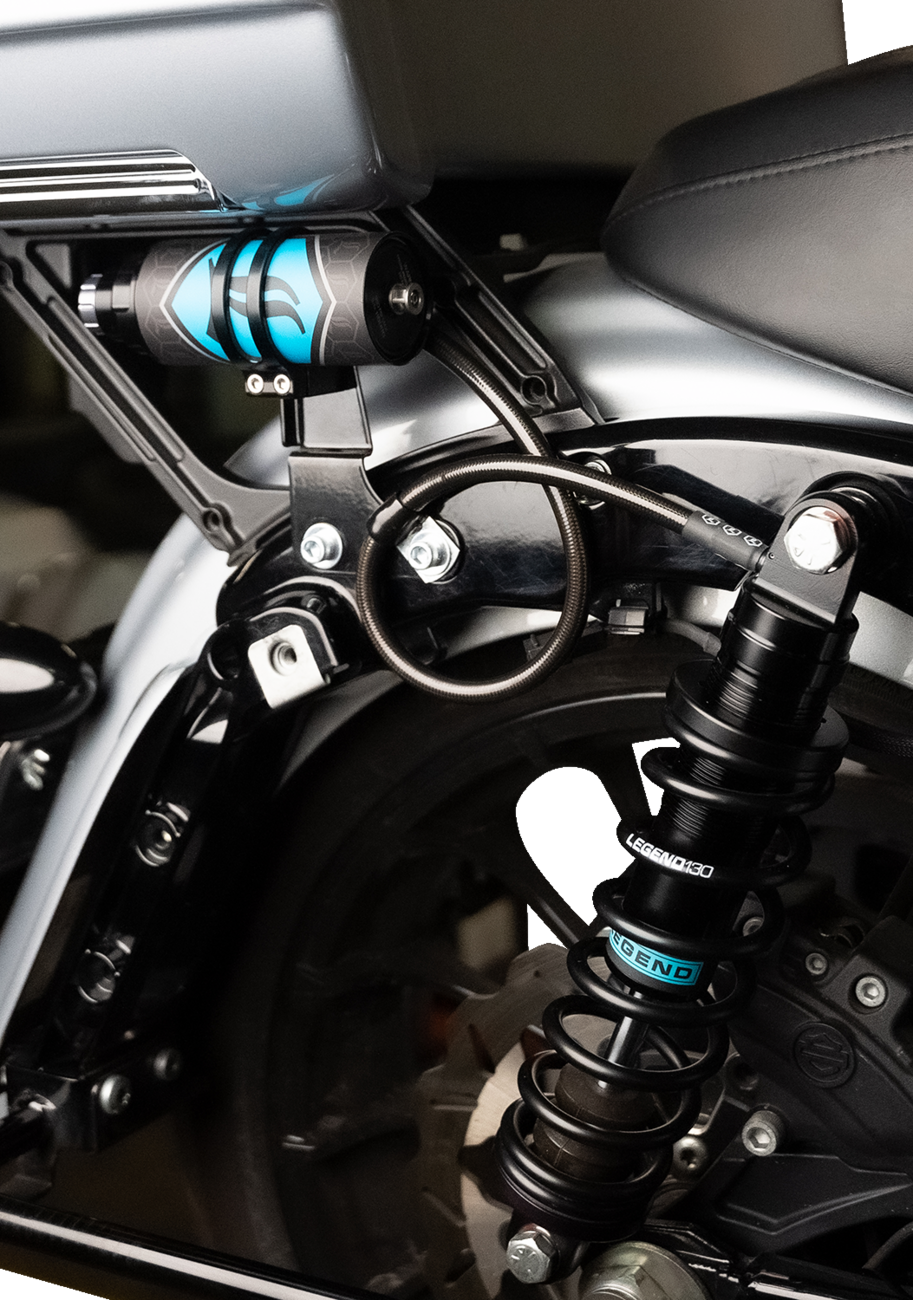

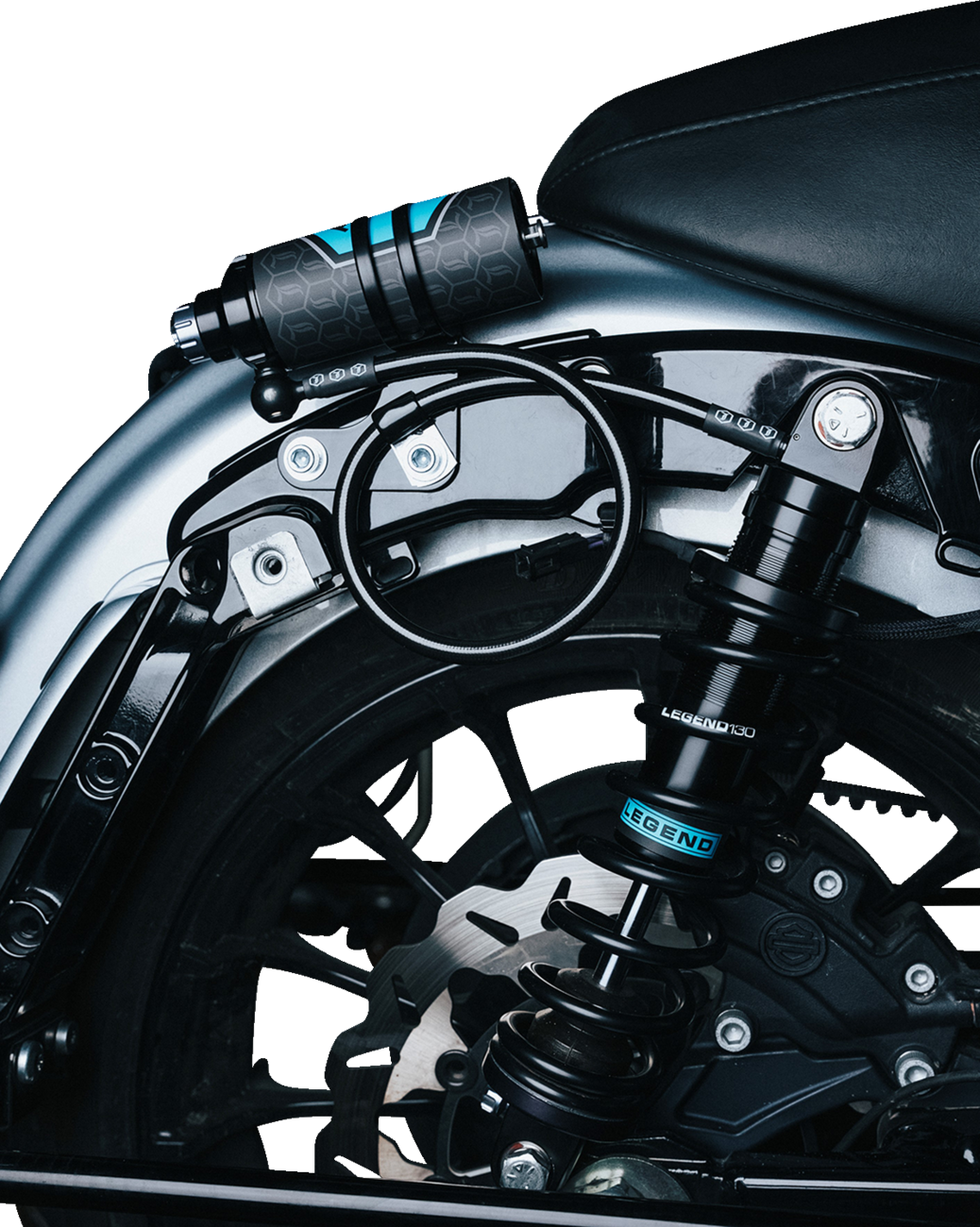

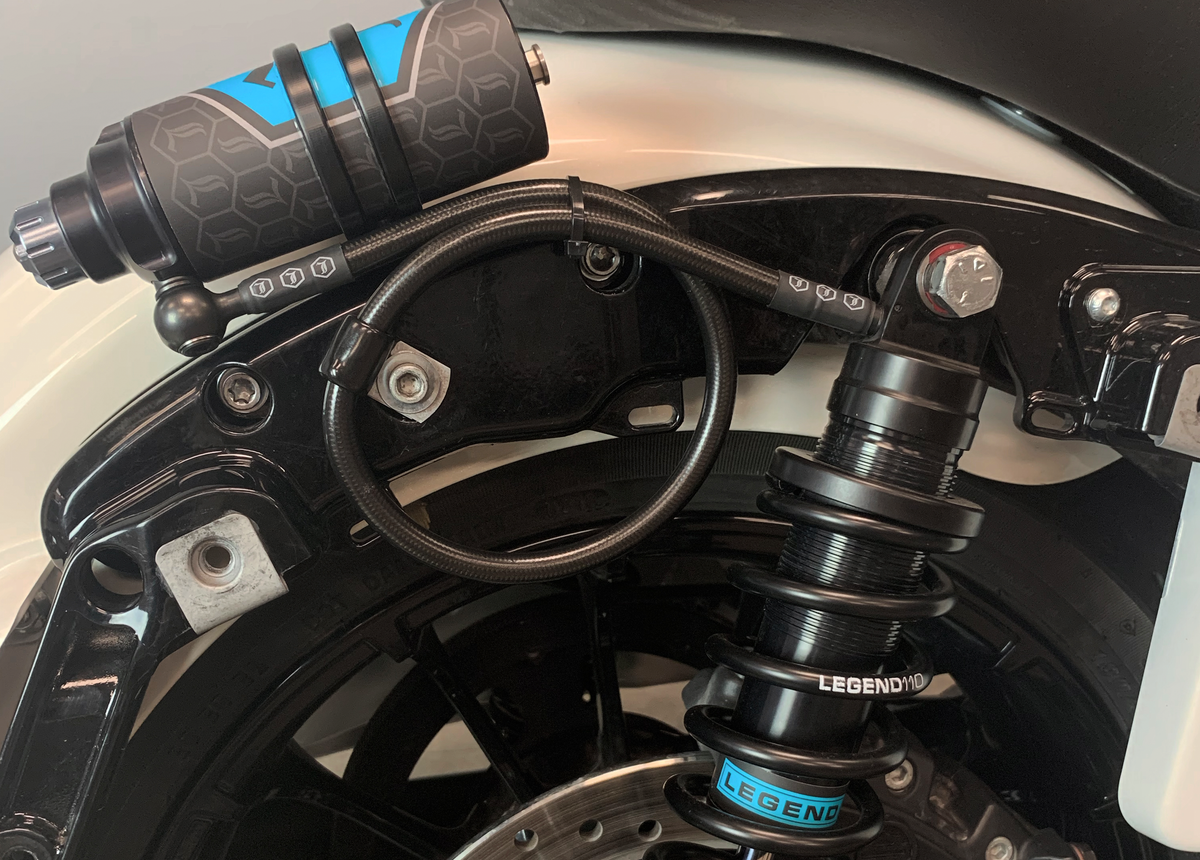

REVO ARC External Reservoir Mount

• Optional mounting kit provides easier access to compression adjusters yet positions reservoirs in a more discrete mounting location
• CNC machined billet aluminum reservoir clamps with powder coated steel mounts and stainless-steel hardware
• Compatible on all '14 -'24 FL Touring models equipped with a solid mount tour pack or H-D quick release docking hardware
• Compatible on some '09 -'13 FL Touring models (see notes)
• Simple installation
• Includes two mounting locations in one easy kit
• Made in the USA

Fitment

• 2009-2022 HARLEY-DAVIDSON FLHR - ROAD KING
• 2014 HARLEY-DAVIDSON FLHR 103 - CVO ROAD KING
• 2011 HARLEY-DAVIDSON FLHR 103 - ROAD KING
• 2014-2019 HARLEY-DAVIDSON FLHRC - ROAD KING CLASSIC
• 2014 HARLEY-DAVIDSON FLHRSE - CVO ROAD KING
• 2017-2025 HARLEY-DAVIDSON FLHRXS - ROAD KING SPECIAL
• 2009-2010, 2019-2022 HARLEY-DAVIDSON FLHT - ELECTRA GLIDE STANDARD
• 2017-2019 HARLEY-DAVIDSON FLHTCU - ELECTRA GLIDE ULTRA CLASSIC
• 2014-2016 HARLEY-DAVIDSON FLHTCU - ULTRA CLASSIC
• 2014-2016 HARLEY-DAVIDSON FLHTCU TC - ULTRA CLASSIC TWIN-COOLED
• 2015-2016 HARLEY-DAVIDSON FLHTCUL - ULTRA CLASSIC LOW
• 2015-2016 HARLEY-DAVIDSON FLHTCUL TC - ULTRA CLASSIC LOW TWIN-COOLED
• 2014-2024 HARLEY-DAVIDSON FLHTK - ULTRA LIMITED
• 2014 HARLEY-DAVIDSON FLHTK 103 - CVO LIMITED
• 2018, 2023 HARLEY-DAVIDSON FLHTK ANV - ULTRA LIMITED ANNIVERSARY
• 2014-2017 HARLEY-DAVIDSON FLHTK SHRINE - ULTRA LIMITED SHRINE
• 2018-2023 HARLEY-DAVIDSON FLHTK SHRINE - ULTRA LIMITED SHRINE EDITION
• 2015-2019 HARLEY-DAVIDSON FLHTKL - ULTRA LIMITED LOW
• 2014-2017 HARLEY-DAVIDSON FLHTKSE - CVO LIMITED
• 2018-2021 HARLEY-DAVIDSON FLHTKSE - CVO ULTRA LIMITED
• 2018 HARLEY-DAVIDSON FLHTKSE ANV - CVO ULTRA LIMITED ANNIVERSARY
• 2022 HARLEY-DAVIDSON FLHTRKSE - CVO ROAD GLIDE LIMITED
• 2023 HARLEY-DAVIDSON FLHTRKSE ANV - CVO ROAD GLIDE LIMITED ANNIVERSARY
• 2009-2023 HARLEY-DAVIDSON FLHX - STREET GLIDE
• 2011 HARLEY-DAVIDSON FLHX 103 - STREET GLIDE
• 2018 HARLEY-DAVIDSON FLHX ANV - STREET GLIDE ANNIVERSARY
• 2014 HARLEY-DAVIDSON FLHX SHRINE - STREET GLIDE SHRINE
• 2026 HARLEY-DAVIDSON FLHXL - STREET GLIDE LIMITED
• 2026 HARLEY-DAVIDSON FLHXLSE - CVO STREET GLIDE LIMITED
• 2014-2023 HARLEY-DAVIDSON FLHXS - STREET GLIDE SPECIAL
• 2023 HARLEY-DAVIDSON FLHXS ANV - STREET GLIDE ANNIVERSARY
• 2018 HARLEY-DAVIDSON FLHXS ANV - STREET GLIDE SPECIAL ANNIVERSARY
• 2015-2022 HARLEY-DAVIDSON FLHXSE - CVO STREET GLIDE
• 2022-2023 HARLEY-DAVIDSON FLHXST - STREET GLIDE ST
• 2009 HARLEY-DAVIDSON FLTR - ROAD GLIDE
• 2020-2024 HARLEY-DAVIDSON FLTRK - ROAD GLIDE LIMITED
• 2016-2019 HARLEY-DAVIDSON FLTRU - ROAD GLIDE ULTRA
• 2015 HARLEY-DAVIDSON FLTRUSE - CVO ROAD GLIDE
• 2016 HARLEY-DAVIDSON FLTRUSE - CVO ROAD GLIDE ULTRA
• 2015-2023 HARLEY-DAVIDSON FLTRX - ROAD GLIDE
• 2010-2013 HARLEY-DAVIDSON FLTRX - ROAD GLIDE CUSTOM
• 2011 HARLEY-DAVIDSON FLTRX 103 - ROAD GLIDE CUSTOM
• 2026 HARLEY-DAVIDSON FLTRXL - ROAD GLIDE LIMITED
• 2015-2023 HARLEY-DAVIDSON FLTRXS - ROAD GLIDE SPECIAL
• 2023 HARLEY-DAVIDSON FLTRXS ANV - ROAD GLIDE ANNIVERSARY
• 2018-2022 HARLEY-DAVIDSON FLTRXSE - CVO ROAD GLIDE
• 2022-2023 HARLEY-DAVIDSON FLTRXST - ROAD GLIDE ST

Installation notes

• Not compatible on 2009-2013 models equipped with solid mount tour pack or H-D docking station hardware.
• Not compatible on 2023-2025 FLHXSE/FLTRXSE/FLTRXSTSE models
• Not compatible on 2024-2026 FLHX/FLHXU/FLTRX models

Manufacturer part number: 1313-0167
Distributor part number: 1313-0167
Sold as: Kit
