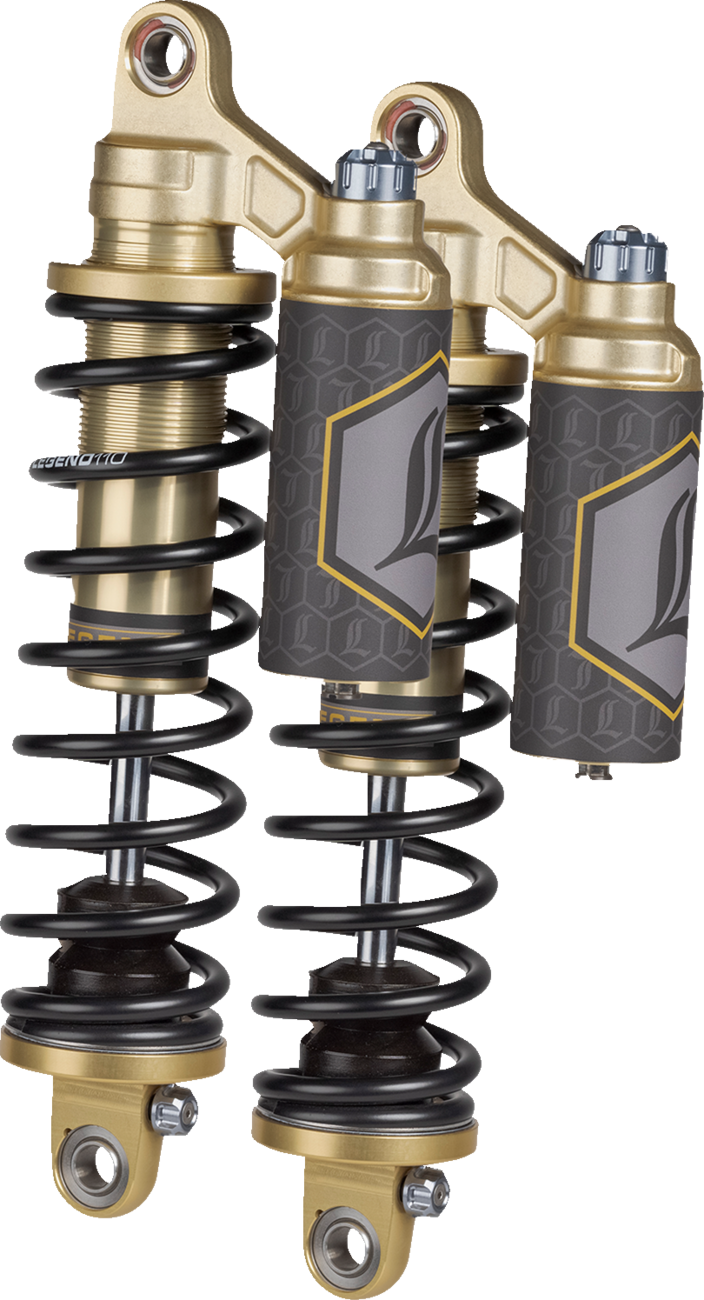

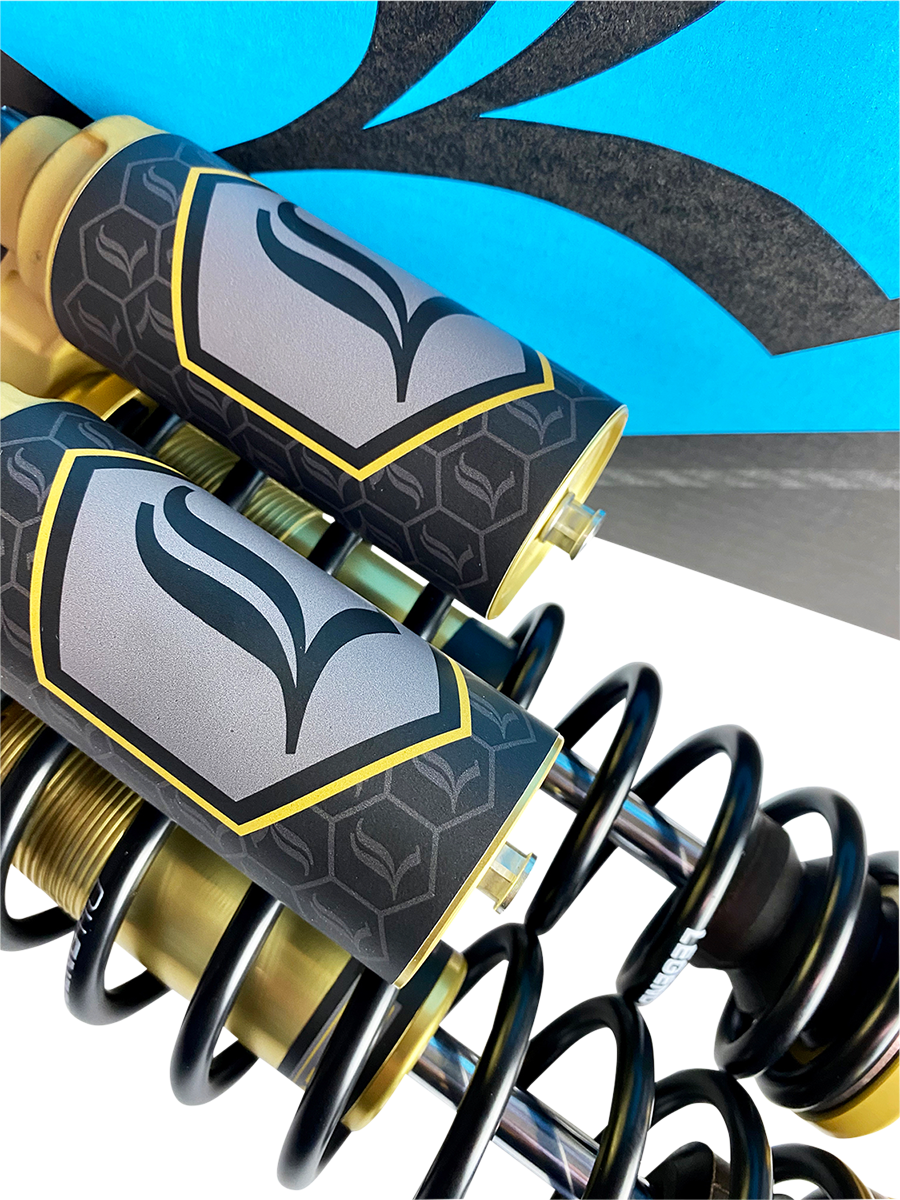

Legend Suspension REVO ARC Piggyback Shocks - 13" - Standard - Gold - '04-'22 Sportster

REVO ARC Piggyback Shocks - 13" - Standard - Gold - '04-'22 Sportster

• Available in Black, Gold and Clear Type III hard coat anodize
• Legend's touring specific coil spring rates provide superior ride comfort, improved performance, and increased resistance to bottoming for all day comfort
• Adjusts by hand, no tools needed
• Available in 13" and 14", standard or heavy-duty applications
• Easy installation and alignment, provided by spherical bearings on both top and bottom mounting points
• 35 mm monotube construction
• Deflective disc valve stacks
• Balanced/Matched piston and base-valve design specific for motorcycle applications
• Low friction sealing system and sliding bearings for improved performance and feel
• Features independent compression and rebound damping adjusters that are specifically designed to make fast, precise, and repeatable changes to ride comfort and performance with a simple turn of a knob
• Provides optimum rebound and compression performance for any given rider weight, personal ride preference, or personal riding style
• Nitrogen gas bladder design allows ultra-fast response and stiction-free movement
• Light to heavy riders can fine-tune ride preference
• Aggressive to casual riding styles can tune to desired quality or personal preference
• Made by hand in Sturgis, SD USA

Fitment

• 2017-2020 HARLEY-DAVIDSON XL1200C - 1200 CUSTOM
• 2004-2016 HARLEY-DAVIDSON XL1200C - SPORTSTER 1200 CUSTOM
• 2008, 2013 HARLEY-DAVIDSON XL1200C ANV - SPORTSTER 1200 CUSTOM ANV
• 2013-2016 HARLEY-DAVIDSON XL1200CA - SPORTSTER 1200 CUSTOM LIMITED A
• 2017 HARLEY-DAVIDSON XL1200CB - 1200 CUSTOM LIMITED B
• 2013-2016 HARLEY-DAVIDSON XL1200CB - SPORTSTER 1200 CUSTOM LIMITED B
• 2011-2016 HARLEY-DAVIDSON XL1200CP - SPORTSTER 1200 CUSTOM H-D1
• 2019-2020 HARLEY-DAVIDSON XL1200CX - 1200 ROADSTER
• 2016-2018 HARLEY-DAVIDSON XL1200CX - ROADSTER
• 2007-2012 HARLEY-DAVIDSON XL1200N - NIGHTSTER
• 2018-2021 HARLEY-DAVIDSON XL1200NS - IRON 1200
• 2004-2008 HARLEY-DAVIDSON XL1200R - SPORTSTER 1200 ROADSTER
• 2009 HARLEY-DAVIDSON XL1200R - SPORTSTER 1200R
• 2012-2016 HARLEY-DAVIDSON XL1200V - SEVENTY-TWO
• 2010-2022 HARLEY-DAVIDSON XL1200X - FORTY-EIGHT
• 2018 HARLEY-DAVIDSON XL1200X ANV - FORTY-EIGHT ANNIVERSARY
• 2018-2020 HARLEY-DAVIDSON XL1200XS - FORTY-EIGHT SPECIAL
• 2004-2009 HARLEY-DAVIDSON XL883 - SPORTSTER 883
• 2004-2010 HARLEY-DAVIDSON XL883C - SPORTSTER 883 CUSTOM
• 2009-2022 HARLEY-DAVIDSON XL883N - IRON 883
• 2011-2015 HARLEY-DAVIDSON XL883R - 883 ROADSTER
• 2005-2010 HARLEY-DAVIDSON XL883R - SPORTSTER 883R
• 2008 HARLEY-DAVIDSON XR1200 - SPORTSTER 1200
• 2009-2010 HARLEY-DAVIDSON XR1200 - XR1200
• 2010-2013 HARLEY-DAVIDSON XR1200X - XR1200X

Installation notes

• Heavy Duty application is recommended for 500lb.+ rider and passenger total weight. Also consider Heavy Duty if the majority of your riding is 2-UP, stunt riding, or aggressive riding style
• Does not fit Sportster Super Low
• Does not fit Sportster S (RH1250)
• Does not fit Sportster Nightster (RH975)
• 14″ Shocks require short exhaust

Manufacturer part number: 1310-1918
Distributor part number: 1310-1918
Sold as: Pair
